Treston drawer Gridfinity Refined spacers

prusaprinters

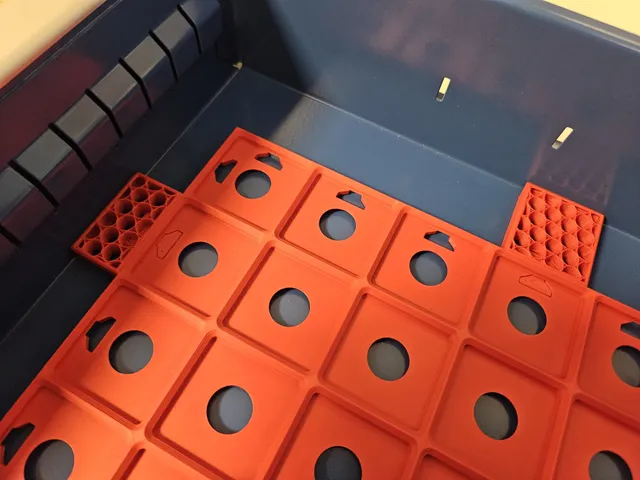

These spacers fix a grid of 10x14 gridfinity refined plates in place in a Treston drawer. The gaps between the drawers side and the end of the gridfinity plate are not large enough to fit one standard gridfinity row, but large enough that the plates shift. The gap on the side is large enough to accomodate long items, such as yardsticks/metersticks, misc tools etc. Fitted to the plates using the standard connector from the Gridfinity Refined kit. These likely work fine with regular Gridfinity plates as well. The connectors aren't really necessary as they press fit tightly. Recommend printing with zero top or bottom layers for a fast print. Can of course be printed with them too, it'll just take longer. More versions are coming which will have dedicated holders for yardsticks and more. These are tight enough that you probably only need one per side. I went with two because why not! To put the spacer in, place the connector in its place on the plate. Put the spacer over it, slotting the “neck” of it's connector shaped hole over the connector, then slide the outer edge down against the edge of the drawer. The fit is tight, it's meant to be! This is why the edges of the spacer are angled; the spacer will not fit otherwise. Happy printing!
