Tronxy Y-spanner

prusaprinters

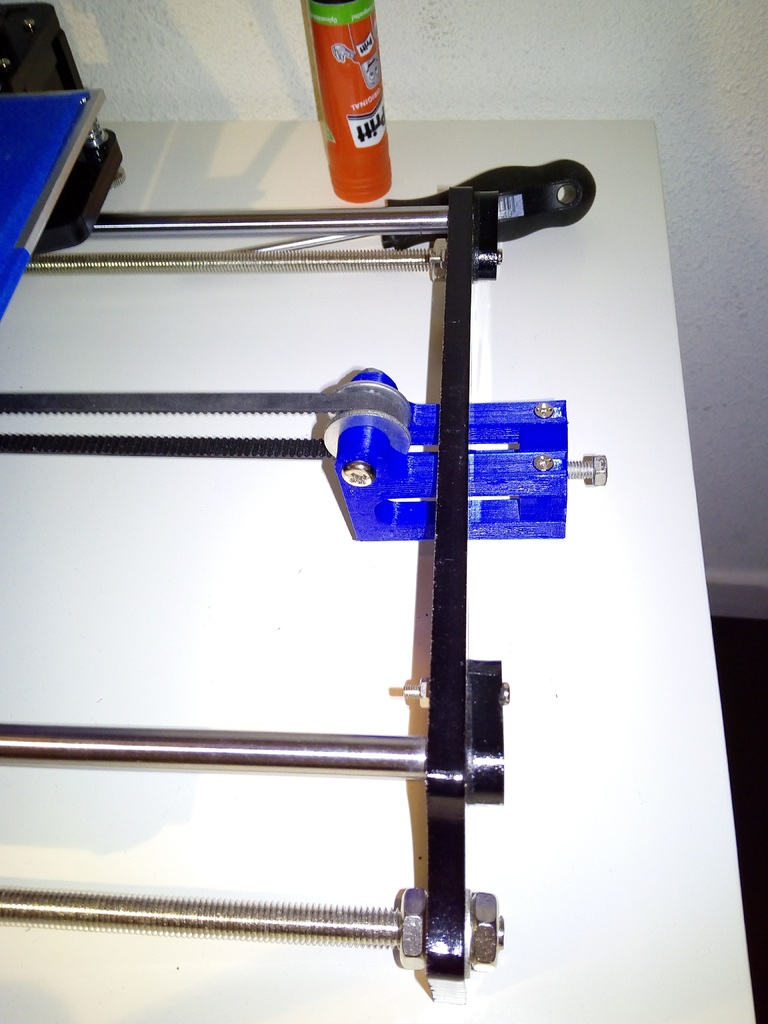

<p>Belt tensioner for Tronxy, Anet A8 look alike.<br/> This part is totally based on the</p> <p> Anet A8 Belt tensioner<br/> by mugs, published Sep 27, 2016</p> <p>I reused bearing, bolt, nut and washers from the original printer. For spanning a M5 bolt and nut and two M3 bolts and nuts to attach the endplate to the sliders. I also added a cap for the tensioning bolt because i did not want to damage the acrylic of the printer.</p> <h3> Print Settings</h3> <p><strong>Printer:</strong></p> <p>tronxy</p> <p><p class="detail-setting rafts"><strong>Rafts: </strong> <div><p>No</p></div><strong>Supports:</strong></p> <p>No</p> <p><p class="detail-setting resolution"><strong>Resolution: </strong> <div><p>0.2</p></div><strong>Infill:</strong></p> <p>15%</p> </p></p> Category: 3D Printer Parts
