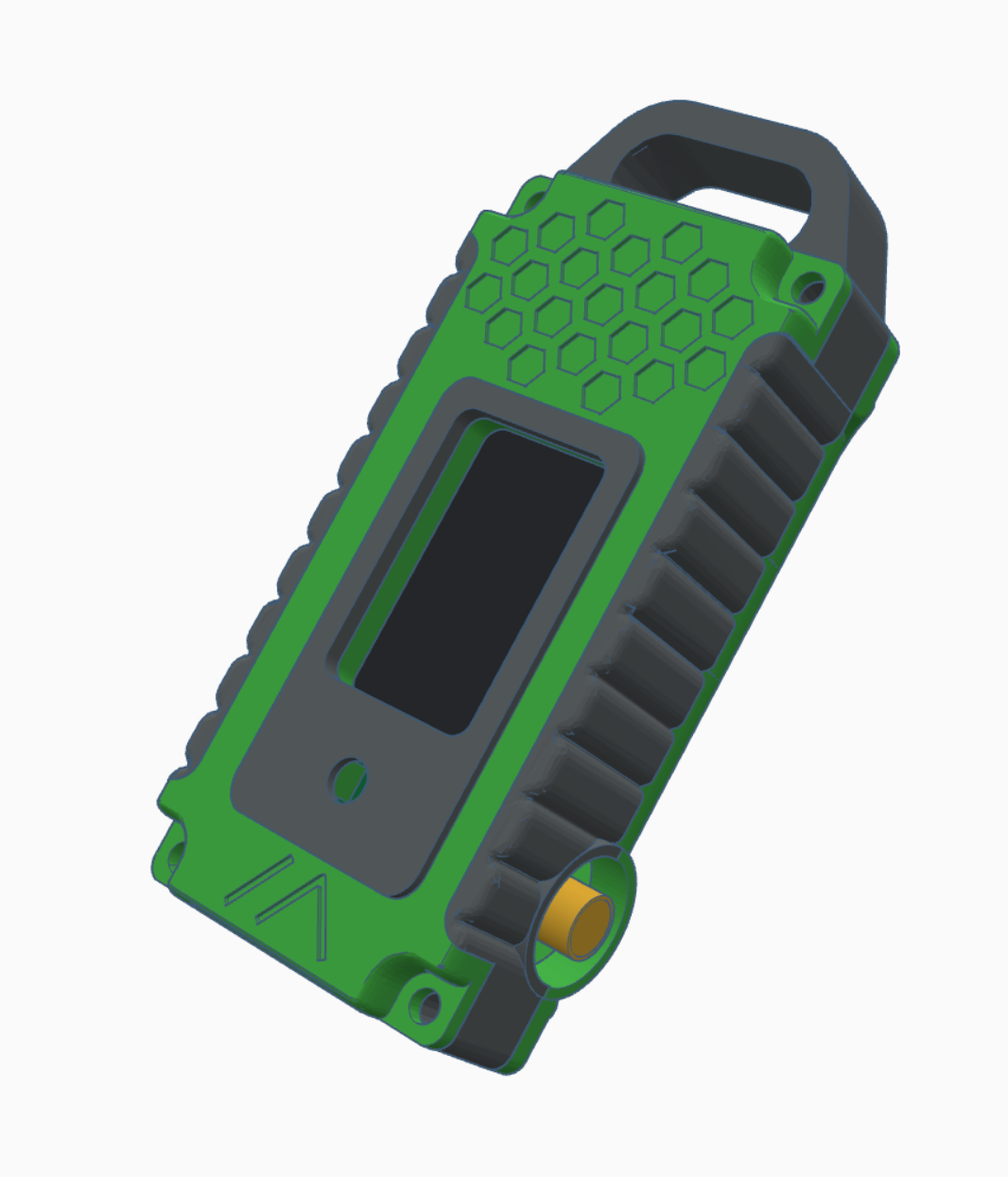

TTGO LoRa32 v2.1.1.6 case for Meshtastic

prusaprinters

<h3>TTGO LoRa32 v2.1.1.6 case for Meshtastic</h3><p>Designed for LiPo battery with dimensions 7mm (H) x 30mm (W) x 48mm (L)<i>(Battery code 703048)</i></p><h4>&nbsp;</h4><p><i><strong>Update 26-March-2022:</strong></i></p><ul><li>Uploaded ‘v2’ of all front case models to correct a small hole near the bottom right screw</li><li>Added a DIN rail-mount frame model</li></ul><h3>&nbsp;</h3><h3>Required hardware:</h3><ul><li>Four (4) M3x16mm socket head cap screws</li><li>Four (4) M3 nuts</li><li>Two (2) M2 screws (to secure TTGO LoRa32 board to frame)</li><li>One (1) LiPo battery pack:<ul><li>Amazon: 1,100mAh - <a href="https://amazon.com/1100mAh-Rechargable-Protection-Insulated-Development/dp/B0867KDMY7">https://amazon.com/1100mAh-Rechargable-Protection-Insulated-Development/dp/B0867KDMY7</a></li><li>Ali Express: 1,000mAh - <a href="https://www.aliexpress.com/item/1005003417080612.html">https://www.aliexpress.com/item/1005003417080612.html</a></li></ul></li><li>One (1) momentary micro push button (for PRG): https://amazon.com/gp/product/B07C7211PJ</li></ul><h3>Optional accessories:</h3><ul><li><i>TTGO_LoRa32_v2.1.1.6_Case_Screen-gasket</i> - Print in TPU, to protect the OLED screen</li><li><i>TTGO_LoRa32_v2.1.1.6_Case_SMA-gasket</i> - Print in TPU</li></ul><h3>Print Settings</h3><p><strong>Printer Brand: </strong>Creality</p><p><strong>Printer: </strong>CR-10</p><p><strong>Rafts: </strong>No</p><p><strong>Supports: </strong>Yes</p><p><strong>Resolution: </strong>0.2mm</p><p><strong>Infill: </strong>20%</p><p><strong>Filament:</strong> Inland PLA, PETG, or ABS Various</p><p>Category: Electronics</p>
