Wall Control Hooks

prusaprinters

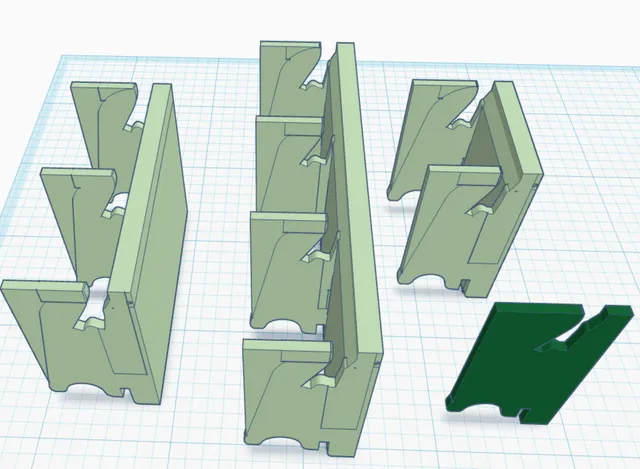

V2 Updated design that is stronger and easier to print vertically. This is a simple modification of the Wall Control Hook that I created to convert other tool holders to Wall Control.These are designed to be combined to your own object, it is recommended to print sideways with supports to provide more strength. Highly recommend using PETG or similar material for strength.Also added are two additional options allowing an M4 or M5 screw to be used as a peg using the countersunk nut . These have been created by @ptyork on Thingiverse (still v1)Also on TinkerCad which will have any updates, so Tinker these yourself:https://www.tinkercad.com/things/7Eq3AGUzG47 Print instructionsIdeally print your item with the hook sideways. This will give you the most strength as the force will not be pulling apart the layer lines.  Stronger layer lines with more heat is likely helpful with quality dry filament.  If sideways is not ideal,  design and print your item upside down.  There will be some small supports that you CAREFULLY need to clean up within the hook to avoid snapping the hooks. Filament:Prusament PETG or any other strong filament. PLA is too brittle. Do not use PLA.
