Wanhao I3 Duplicator V2 Raspberry Pi Case

prusaprinters

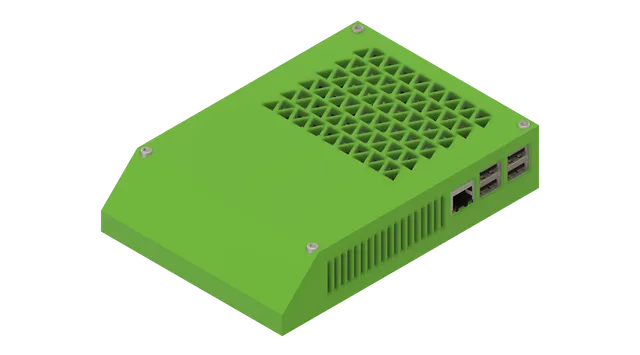

Wanhao I3 Duplicator Raspberry Pi 2 CaseWhen adding Octoprint to the Wanhao Duplicator I3, I needed to develop a case for the Raspberry Pi 2 so that it could be mounted to the printer. This case encloses both a Raspberry Pi 2 and two Switch Mode Power Supplies. The two modules serve two purposes—one to power the Raspberry Pi and another to control the LEDs to light up the print bed.Useful Blogs for Learning Electronics:As far as powering the Raspberry Pi and controlling the LEDs, the following blogs will be helpful for finding useful information:Powering Raspberry PiControlling LEDs with a Raspberry Pi and MOSFETsEquipment List8 x M3x6mm Bolts8 x M3(6mm+6mm) Female to Male Standoffs4 x M3(6mm) Female to Female Standoffs4 x M3x8mm Bolts4 x M2X16mm Bolts4 x M2 NutsRaspberry Pi 32 x LM2596 Breakout BoardsUseful LinksOctoprintOctoprint Enclosure PluginRaspberry Pi FoundationWanhao i3 Duplicator V2LM2596 Breakout BoardsNylon Nuts and BoltsMetal Nuts and Bolts Print SettingsPrinter Brand:PrusaPrinterPrusa I3 Mk3sRafts:NoSupports:NoResolution:0.4mmInfill:10%FilamentPrima Value PLA GreenTechnical DrawingExploded View
