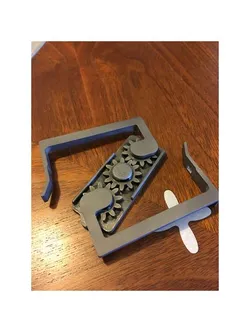

Web Coupler
Just couples two pieces of webbing. Redundant locks, and self-retaining components. 10 degree offset on top web arm. Would be tough to machine, easy to print. Designed for 6Al4V-Ti. I have more revisions placed here: http://brainlubeonline.com/CAD/
BasePlate v8 v1 makes both arms straight on both sides, and is probably what most people will want. It also corrects an error in the gear fence where the diameters on ether side were slightly different. There is also more engagement surface for the lock faces.
