Wireless LED Controller Enclosure

prusaprinters

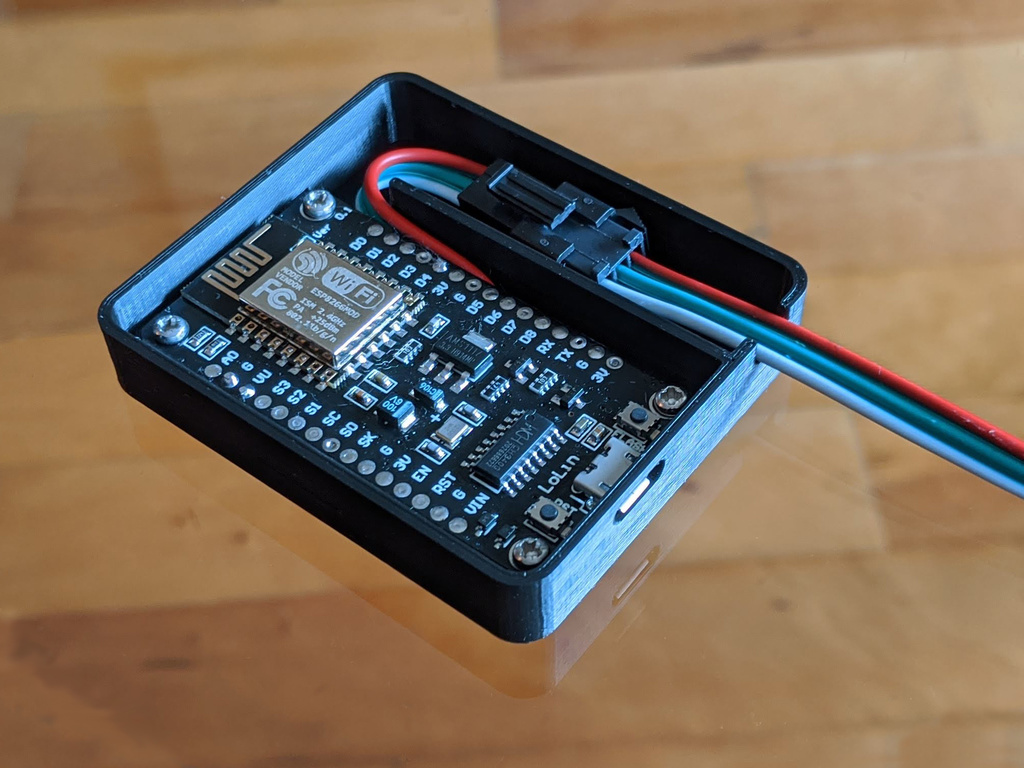

<p>Enclosure for a NodeMCU v3 board with space for a connector to a strip of addressable LEDs. Powered via an external 5V USB supply. Suitable for powering LED strips up to about 1A.</p><p>The NodeMCU v3 board is fixed in to larger compartment with four self-tapping screws. The USB connector is exposed through a slot for connecting an external 5V power supply.</p><p>The wires of a standard 3-pin connector assembly (as often supplied with addressable LED strips) are connected to the board's VUSB, GND and D4 pins. The connector is positioned in the smaller compartment.</p><p>When an LED strip is plugged in the connector pair sits inside the compartment and is protected from the elements. The wires exit a slot on the side of the enclosure.</p><p>The enclosure lid is a snug fit and two clip features hold it in place.</p><p>Note: There are a few different sizes of "NodeMCU" boards. This suits the "Lolin NodeMCU V3" type which is 58mm x 31.5mm. Buy the type without pin headers fitted, or remove them.</p><p>Print with the flat sides against the bed, obviously.</p><p>Originally published on Thingiverse in July 2020 as https://www.thingiverse.com/thing:4515152</p><p>Category: Electronics</p>
